Products

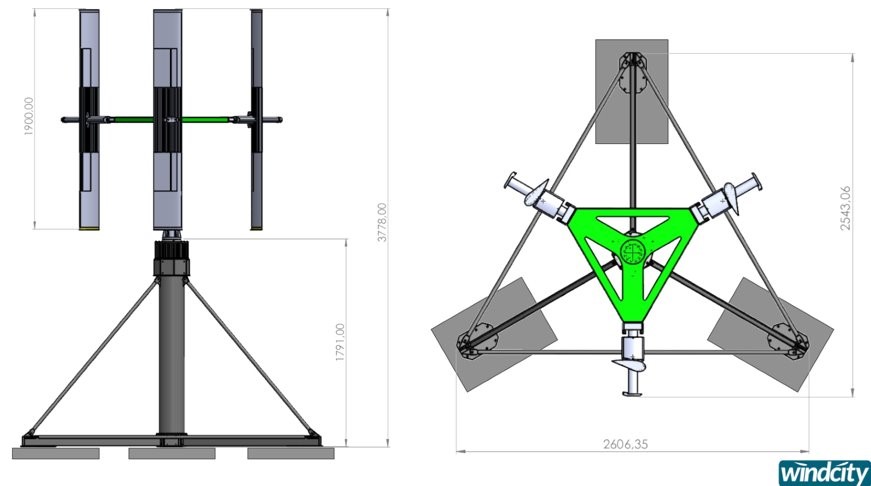

Rooftop installation
- Zero interference with building finishing / waterproofing
- Support tower 1,75 m height x 1,50 m base radius
- Steel / Concrete counterweight 5 / 20 cm
- Redundant Safety by 3-points lifeline-type retention system

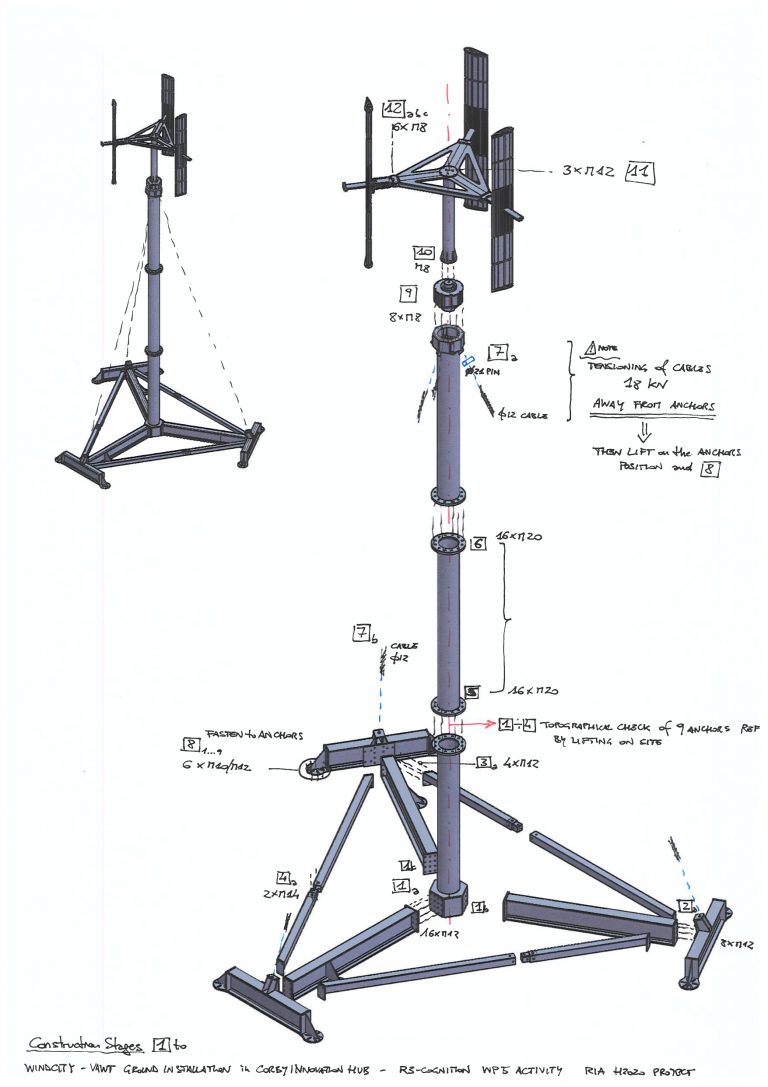

Ground installation
- Reversible foundation system: modular screw anchors by our partner T-Block
- Light weight and cable supported tower structure
- Custom height available in the distributed wind energy market range
COMPONENT | VERSION | MVP Bundle | Add-Ons |
1. Aerogenerator coupled with Permanent Magnets Generator | 1.1 PVG Class IV 1.5 kWp | ✔ | |
1.2 PVG Class IV 3.8 kWp | ✔ | ||
1.3 PVG Special Aerodynamic Brake | ✔ | ||
2. Data Management | 2.1 Web App | ✔ | |
2.2 IoT Gateway | ✔ | ||
3. Installation kit | 3.1 Direct to Ground & Reversible | ✔ | |
3.2 Indirect to flat Reinforced Concrete Rooftop | ✔ | ||
3.3 Custom Design (TC Tower, Chimney…) | ✔ | ||
4. Power Converter | 4.1 Boost: Power to Grid Single phase | ✔ | |
4.1 Boost: Power to Grid Three-phase | ✔ | ||
4.3 Buck: Power to Battery | ✔ | ||
5. Safety & Protection | 5.1 Standard Shutdown System | ✔ |
|
5.2 Pro Offgrid & Lockdown |
| ✔ |

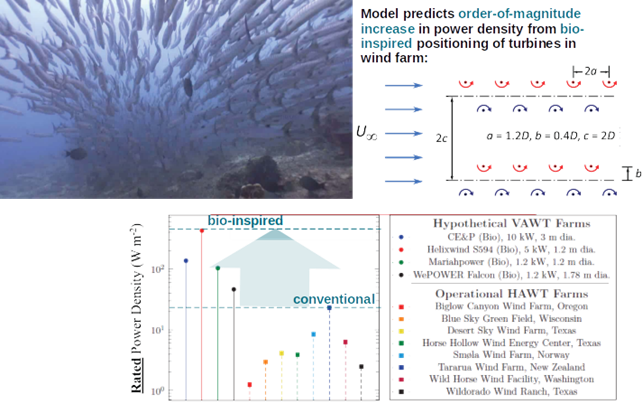

Multiple turbines: a cheatcode for increased energy production

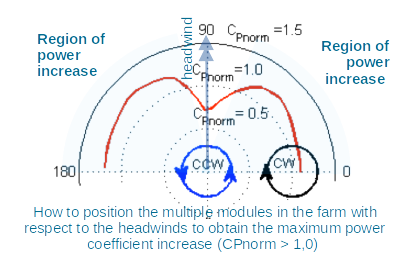

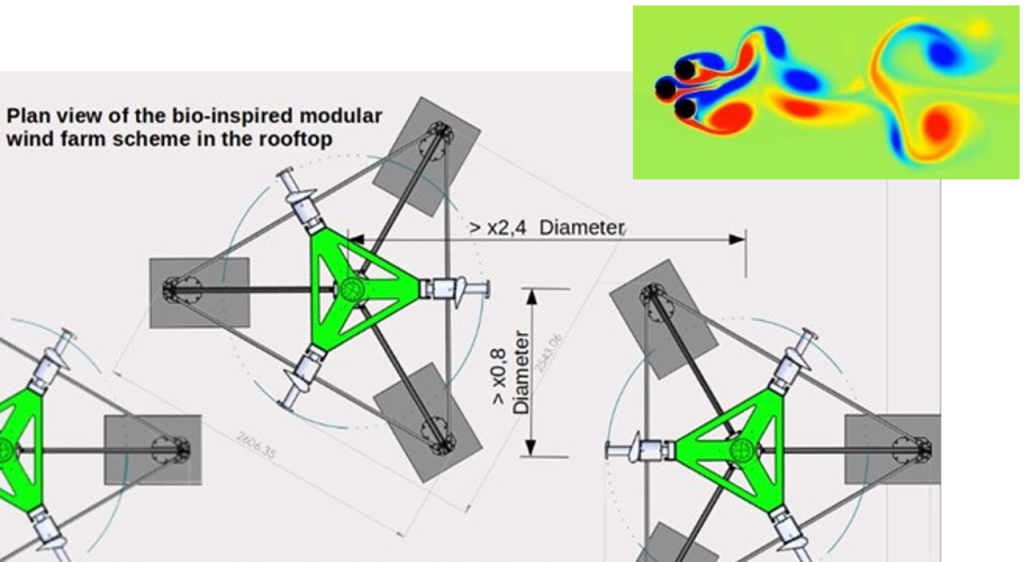

Using multiple Vertical Axis Wind Turbines and designing the mutual positioning of modules by taking inspiration from the hydro-dynamics efficiency obtained by fish schooling:
- X10 power density per square meter of the wind farm on the ground.
- +20% power increase
(Data from FLOWE Laboratory at Caltech Institute of Technology and Vrjie Universiteit Brussels)
