Our Mission

Energies from a Variable Nature

Our Mission

Energies from a Variable Nature

Our products are inspired by an organic concept of knowledge: know-how is the foundational tool for action, but Technology today needs to be completed by knowing why we are making something that way. It is the Science behind.

It is the Responsibility Principle: with our actions and products, we shall hand a liveable Planet to the next generations. We chose to be a Responsible Research & Innovation Tech Company generating impact for sustainability. We design and build according to 2006/42/CE Directive harmonized with IEC 61400-2; we test any feature in our wind tunnel before commissioning.

IMMAGINE GLOBO

Our products are inspired by an organic concept of knowledge: know-how is the foundational tool for action, but Technology today needs to be completed by knowing why we are making something that way. It is the Science behind.

It is the Responsibility Principle: with our actions and products, we shall hand a liveable Planet to the next generations. We chose to be a Responsible Research & Innovation Tech Company generating impact for sustainability. We design and build according to 2006/42/CE Directive harmonized with IEC 61400-2; we test any feature in our wind tunnel before commissioning.

IMMAGINE GLOBO

The Problem

There is a desperate need for distributed energy production, global wind is increasing but conventional turbines perform poorly in urban windy locations: why?

The reason is simple: the wind has two souls, like all of us

  • a regular soul that blows at high altitude: predictable, laminar, with slow cycles of 12-24 hours
  • a turbulent soul found at low altitude, in the urban and suburban environment, only available in quick gusts of 3-5 minutes

Human kind only aimed at the simplest regular flow for wind turbines, so conventional designs perform poorly in the turbulent wind.

The Problem

There is a desperate need for distributed energy production, global wind is increasing but conventional turbines perform poorly in urban windy locations: why?

It’s simple: the wind has two souls, like all of us

  • a regular soul that blows at high altitude: predictable, laminar, with slow cycles of 12-24 hours
  • a turbulent soul found at low altitude, in the urban and suburban environment, only available in quick gusts of 3-5 minutes

Human kind only aimed at the simplest regular flow for wind turbines, so conventional designs perform poorly in the turbulent wind.

Our Solution

Passive Variable Geometry

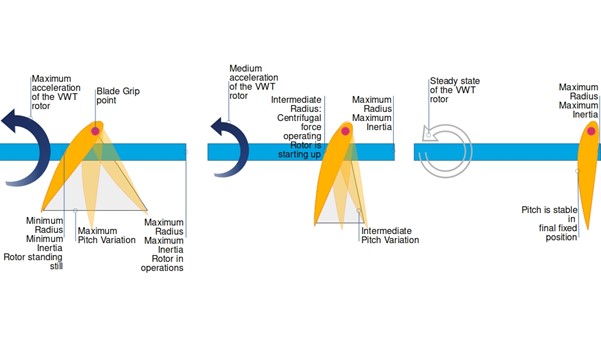

Our patented Passive Variable Geometry, or PVG technology, allows the turbine to quickly adapt to natural changes in wind flows:

  1. Adjusts the pitch angle of the blade as you do with sails, and at the same time:
  2. Increase and decrease the turbine diameter as in carousel. In a word: Self-adapting
  3. As a result it’s 4 times faster to start !

Our Solution

Passive Variable Geometry

Our patented Passive Variable Geometry, or PVG technology, allows the turbine to quickly adapt to natural changes in wind flows:

  1. Adjusts the pitch angle of the blade as you do with sails, and at the same time:
  2. Increase and decrease the turbine diameter as in carousel. In a word: Self-adapting
  3. As a result it’s 4 times faster to start !

How does PVG work?

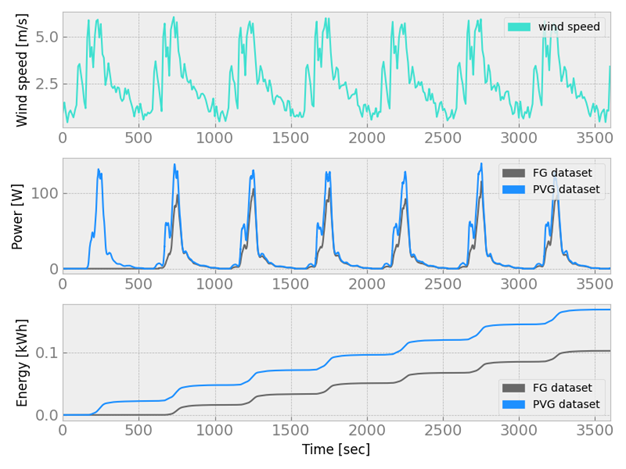

Because it is quick to start, it generates wind energy from each gust of wind that otherwise would be lost. Consider how many gusts of 5 minutes there are in a day, and you will have total efficiency from a simple circular input

pvg_how

Our Artificial Intelligence comes at no energy costs, just from understanding Nature's Intelligence and always adapting to Change.

How does PVG work?

Because it is quick to start, it generates wind energy from each gust of wind that otherwise would get lost.Consider how many gusts of 5 minutes there are in a day, and you will have total efficiency from a simple circular input

Our Artificial Intelligence comes at no energy costs, just from understanding Nature's Intelligence and always adapting to Change. ​

Our Products

Aerogenerator dimensions 1900 mm Blade length x 250 mm Blade chord x 1600 mm Diameter
Aerodynamic performance - Max operating wind 31 m/s as per EOG50 Class IV Small Wind Turbine

Our Products

Aerogenerator dimensions 1900 mm Blade length x 250 mm Blade chord x 1600 mm Diameter
Aerodynamic performance - Max operating wind 31 m/s as per EOG50 Class IV Small Wind Turbine

Rooftop installation

Ground installation

Rooftop installation

Ground installation

COMPONENT

VERSION

MVP Bundle

Add-Ons

1. Aerogenerator coupled with Permanent Magnets Generator

1.1 PVG Class IV 1.5 kWp



1.2 PVG Class IV 3.8 kWp



1.3 PVG Special Aerodynamic Brake



2. Data Management

2.1 Web App



2.2 IoT Gateway



3. Installation kit

3.1 Direct to Ground & Reversible



3.2 Indirect to flat Reinforced Concrete Rooftop



3.3 Custom Design (TC Tower, Chimney…)



4. Power Converter

4.1 Boost: Power to Grid Single phase





4.1 Boost: Power to Grid Three-phase





4.3 Buck: Power to Battery



5. Safety & Protection

5.1 Standard Shutdown System



5.2 Pro Offgrid & Lockdown



COMPONENT

VERSION

MVP Bundle

Add-Ons

1. Aerogenerator coupled with Permanent Magnets Generator

1.1 PVG Class IV 1.5 kWp



1.2 PVG Class IV 3.8 kWp



1.3 PVG Special Aerodynamic Brake



2. Data Management

2.1 Web App



2.2 IoT Gateway



3. Installation kit

3.1 Direct to Ground & Reversible



3.2 Indirect to flat Reinforced Concrete Rooftop



3.3 Custom Design (TC Tower, Chimney…)



4. Power Converter

4.1 Boost: Power to Grid Single phase





4.1 Boost: Power to Grid Three-phase





4.3 Buck: Power to Battery



5. Safety & Protection

5.1 Standard Shutdown System



5.2 Pro Offgrid & Lockdown



UI Design

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.

Web Design

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.

Graphic Design

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.

ccc

Molestie
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.
Adipiscing
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.
Consectetur
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.
Gancididunt
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.

Justo Laoreet Sitamet Cursus Elementum Integer

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Justo nec ultrices dui sapien eget mi. In vitae turpis massa.

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Justo nec ultrices dui sapien eget mi. In vitae turpis massa dolore magna tempor consectetur.

Molestie
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.
Condimentum
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.
Pharetra
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.
Montes
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.
Consectetur
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.
Bibendum
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.

Our Team

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Andy Newman

SEO

Alicia Keys

Marketing Director

Mike Divor

Finance

Patricia Ralph

Designer

Clean energy at the right price

Our turbine has a life span of 20 years and it is able to ensure a return on investment within the first 3-4 years. Thanks to our technology the equivalent price of electricity for the user is in fact in the range 12 – 15 €cent / kWh [*]

This is yet lower than the current price of electricity from the grid, affected by the international geopolitical equilibrium making it more than double on a few months basis.

Our goal is to drop the price of electricity down to 7 €cents / kWh thanks to industrialization of our products.

[*] Data refers to the Trapani province, Italy whose wind characteristics at 10 m from ground allows up to 3500 kWh/year energy yield. Find out more at https://globalwindatlas.info/

Clean energy at the right price

Our turbine has a life span of 20 years and it is able to ensure a return on investment within the first 3-4 years. Thanks to our technology the equivalent price of electricity for the user is in fact in the range 12 – 15 €cent / kWh [*]

This is yet lower than the current price of electricity from the grid, affected by the international geopolitical equilibrium making it more than double on a few months basis.

Our goal is to drop the price of electricity down to 7 €cents / kWh thanks to industrialization of our products.

[*] Data refers to the Trapani province, Italy whose wind characteristics at 10 m from ground allows up to 3500 kWh/year energy yield. Find out more at https://globalwindatlas.info/
